Two Series. One Brand.

Built For
Every Fleet.

The ALT Series covers applications that need data, configuration, and environmental hardening — diagnostic firmware, TREKon connectivity, and IP67 sealing. The LIT Series covers applications that need reliable charging without the connected layer — standard-duty, fixed-function, built to the same field demand.

One Question Decides The Series

Need charge data, diagnostics, and configurable output? Choose ALT. Need reliable charging without the connected layer? Choose LIT. Both ranges are built to what the field actually demands.

ALT Series · Engineered To Earn Its Place

Built from field demand,
for operators who push equipment.

Configurable voltage and current. Temperature-compensated charging that protects battery life. Onboard diagnostics that tell you what the charger sees. Sealed to IP67 against dust, water and vibration, and rated from −30°C to 65°C. When a job needs visibility, configurability, or hardware that survives punishment, ALT is specified for it.

1 / 9

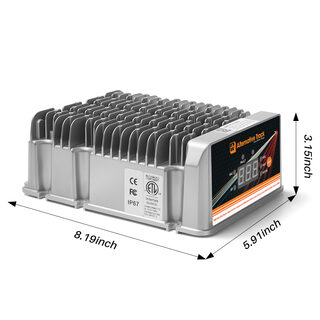

01 · Compact

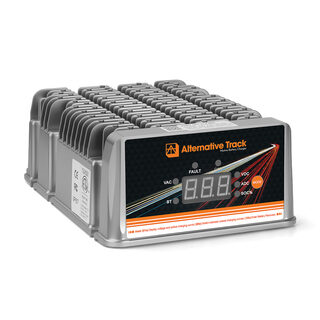

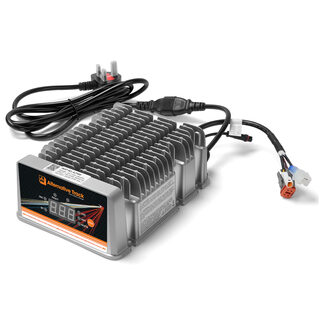

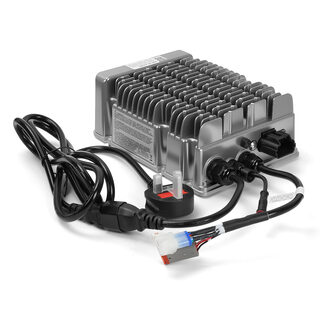

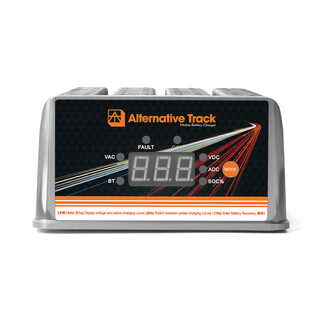

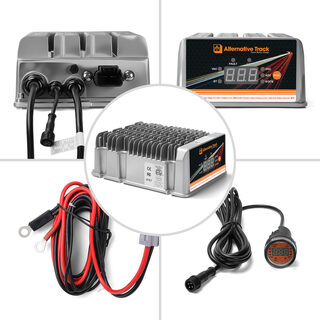

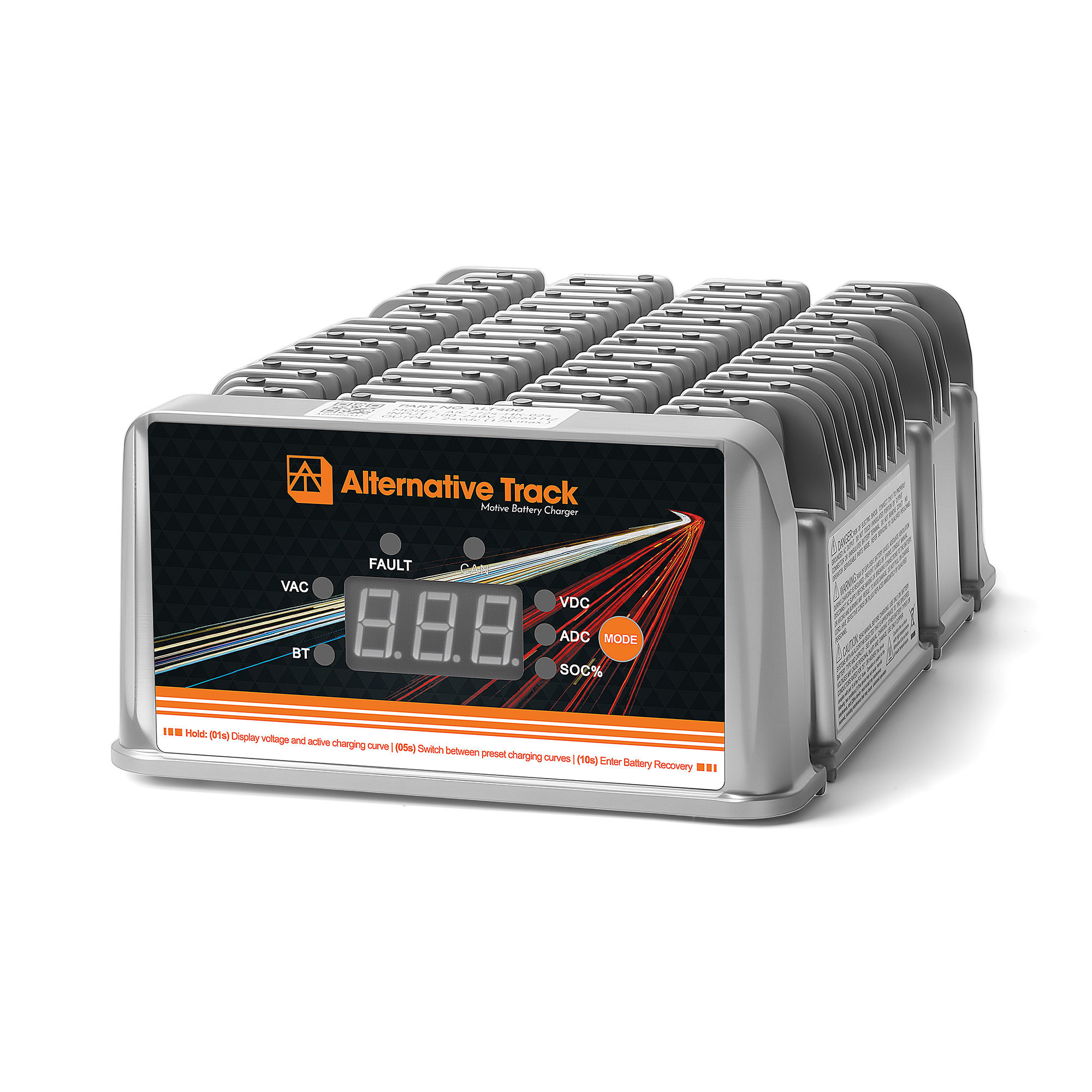

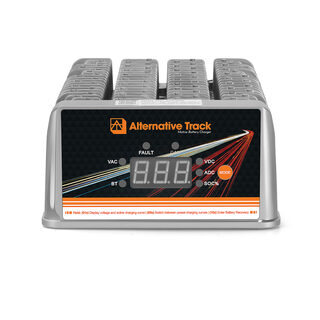

ALT-400

408W · 24V · 17A

The compact entry to the ALT range. Specified for portable equipment, single-machine fleets and OEMs that need a 24V solution without third-party tooling.

Output Power408 W
Voltage24 V
Charge Current17 A
ChemistryLead-Acid · Lithium
Ingress RatingIP67
DiagnosticsTREKon Bluetooth
ComplianceUL1236, FCC, IEC61000
Operating Range−30°C to 65°C
Dimensions208 × 152 × 80 mm
Weight2.1 kg
ALT-400 Datasheet
1 / 9

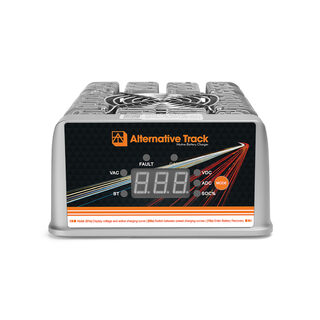

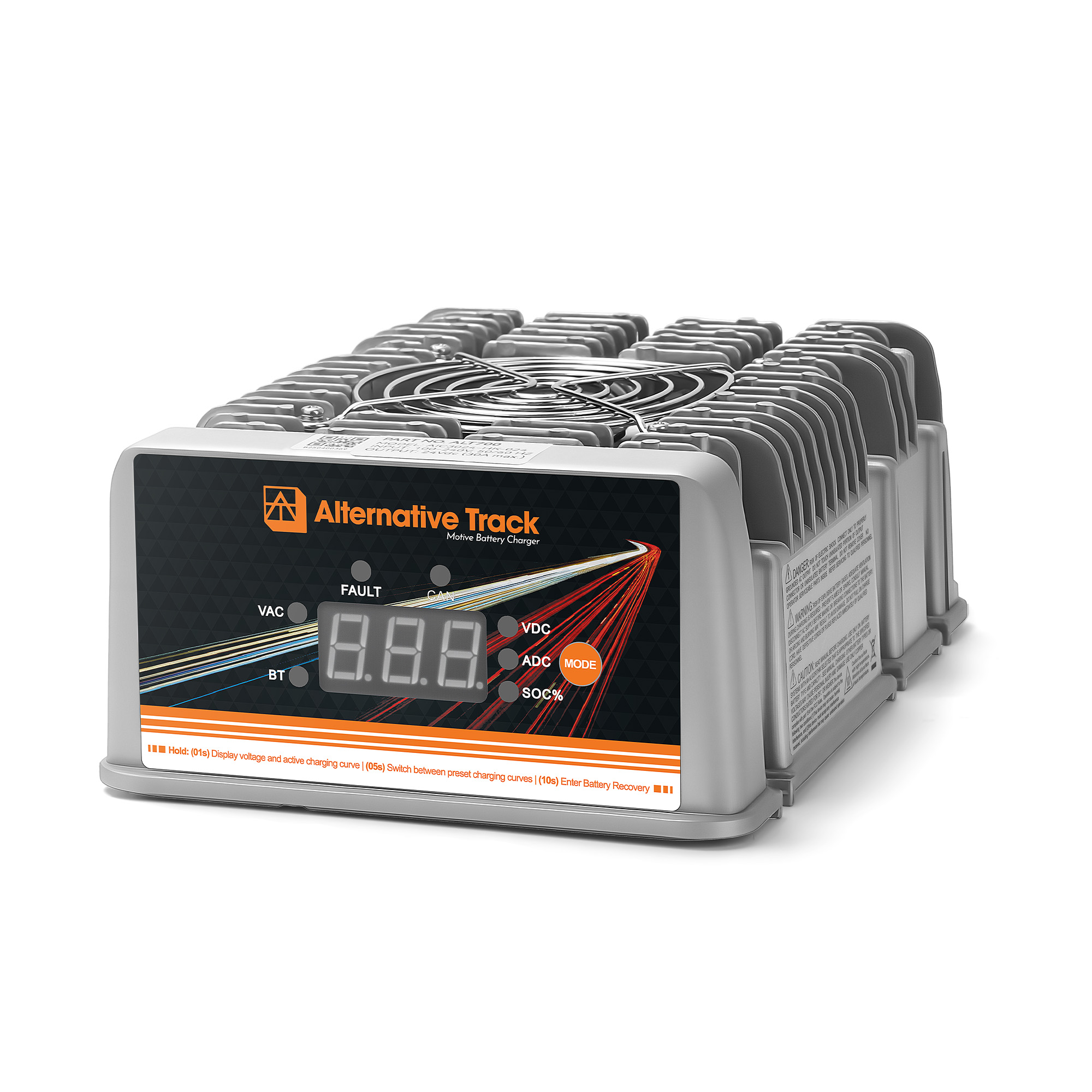

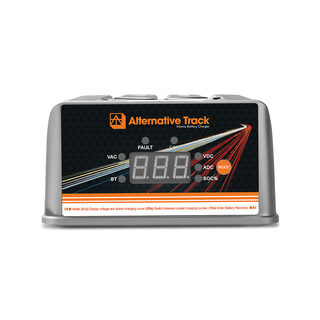

02 · Mid-Range

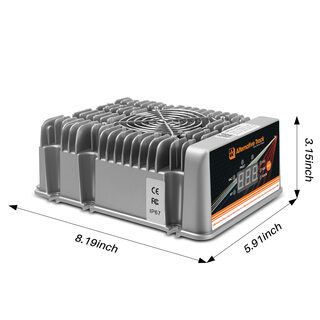

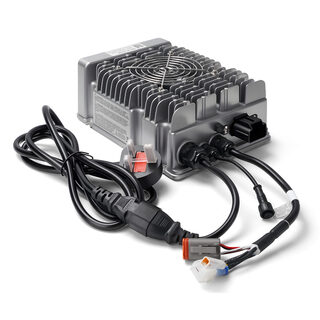

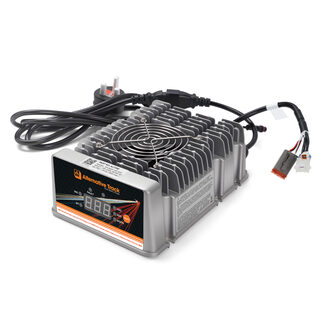

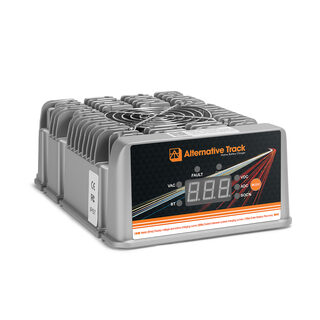

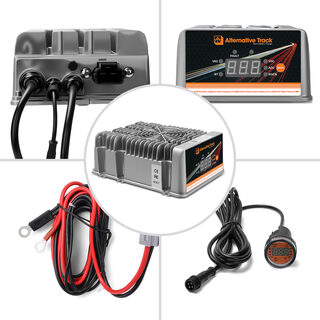

ALT-700 (700S)

720W · 24V or 48V

The 720W workhorse. ALT-700 runs 24V at 30A. The 700S variant carries the same chassis at 48V / 15A. Sized for single-shift floor care and small motive fleets.

Output Power720 W
Voltage24V (700) · 48V (700S)
Charge Current30A (700) · 15A (700S)
ChemistryLead-Acid · Lithium
Ingress RatingIP67
DiagnosticsTREKon Bluetooth
ComplianceUL1236, FCC, IEC61000
Operating Range−30°C to 65°C
Dimensions208 × 152 × 80 mm
Weight2.3 kg
ALT-700 Datasheet ALT-700S Datasheet
1 / 9
03 · Mid-Range

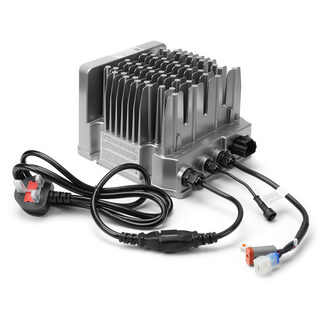

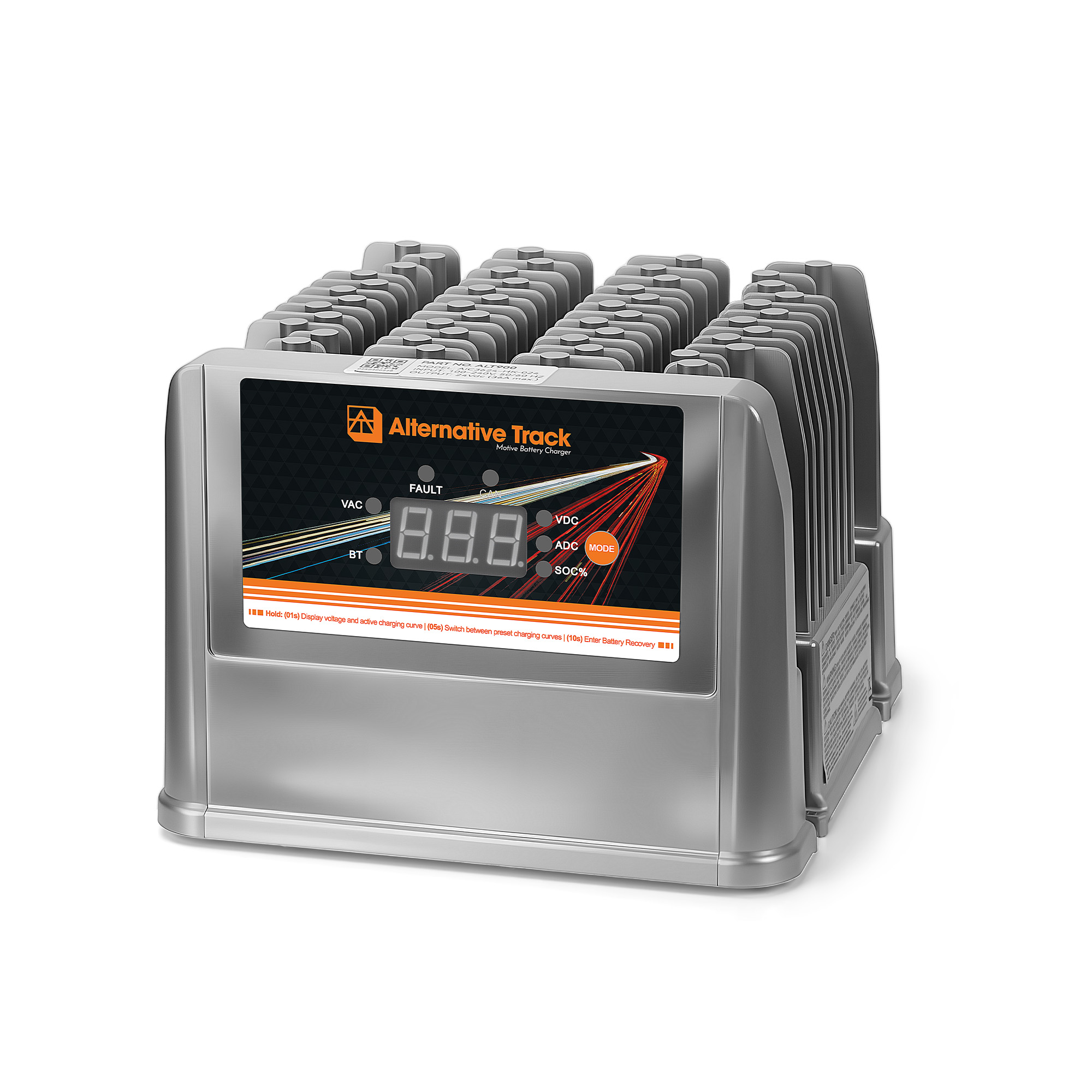

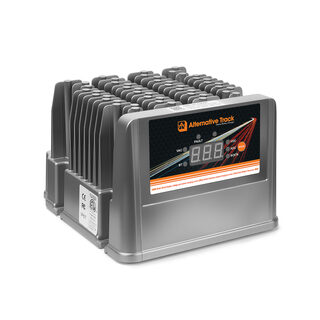

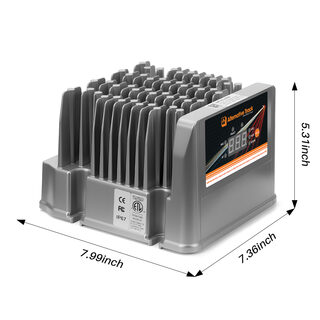

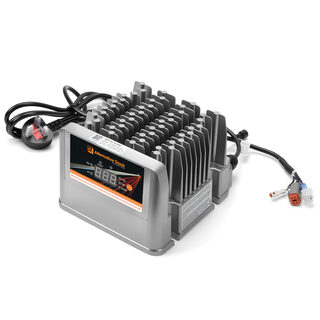

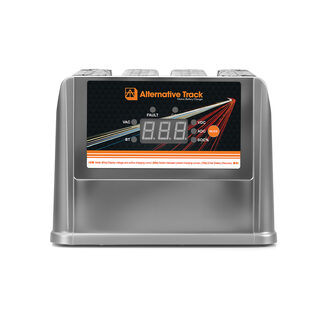

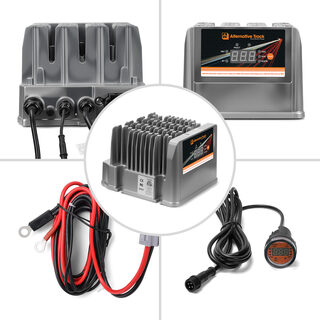

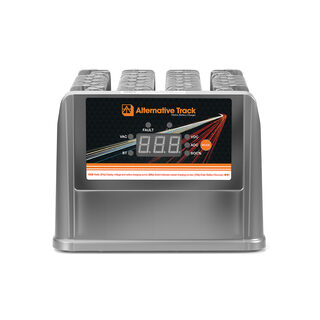

ALT-900 (900S)

864W · 24V or 48V

The double-shift charger. ALT-900 at 24V / 36A or the 900S at 48V / 18A. Used in larger floor care equipment and mid-size motive applications.

Output Power864 W
Voltage24V (900) · 48V (900S)
Charge Current36A (900) · 18A (900S)
ChemistryLead-Acid · Lithium
Ingress RatingIP67
DiagnosticsTREKon Bluetooth
ComplianceUL1236, FCC, IEC61000
Operating Range−30°C to 65°C
Dimensions203.5 × 186 × 138 mm
Weight4.1 kg
ALT-900 Datasheet ALT-900S Datasheet
1 / 9

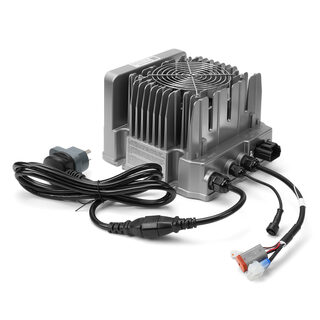

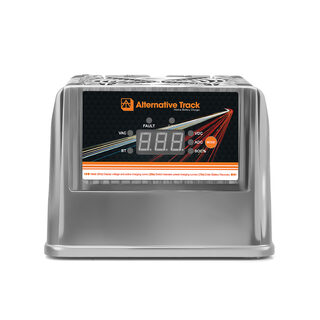

04 · Mid-Range

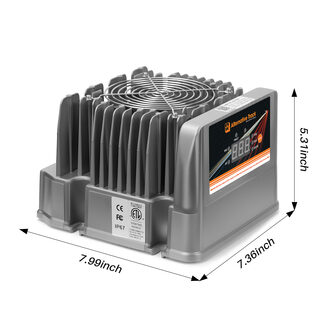

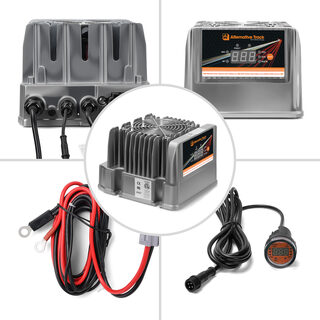

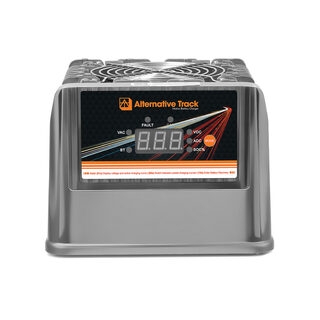

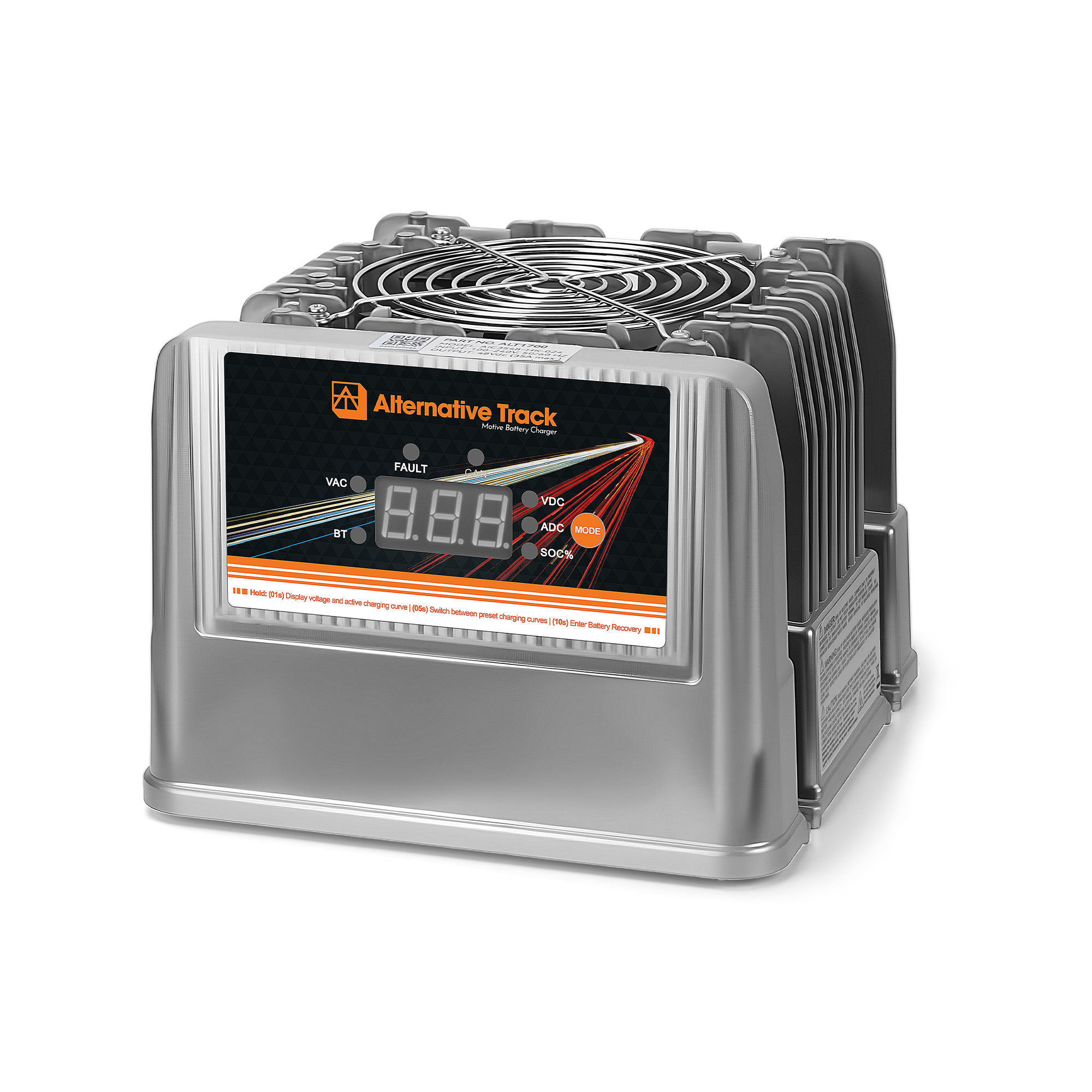

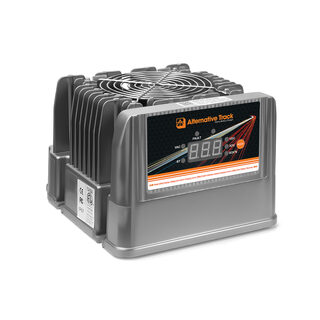

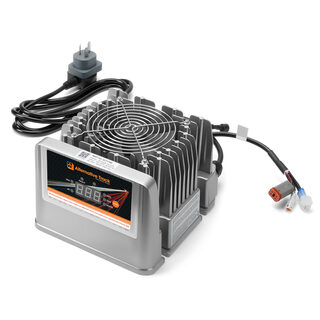

ALT-1700 / 1700RC

1680W · 48V · 35A

Sized for MEWP and golf duty cycles. The 1700RC comes with Battery Reconditioning to revive discharged batteries.

Output Power1680 W
Voltage48 V
Charge Current35 A
ChemistryLead-Acid · Lithium
Ingress RatingIP67
DiagnosticsTREKon Bluetooth
ComplianceUL1236, FCC, IEC61000
Operating Range−30°C to 65°C
Dimensions203.5 × 186 × 138 mm
Weight4.1 kg
ALT-1700 Datasheet ALT-1700RC Datasheet
1 / 9

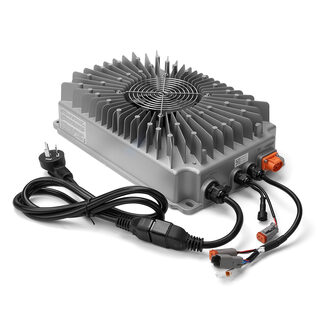

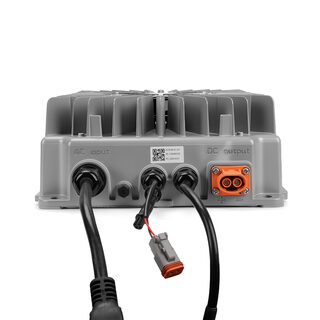

05 · High Output

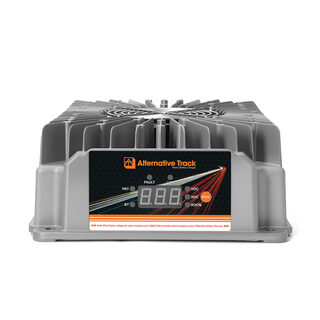

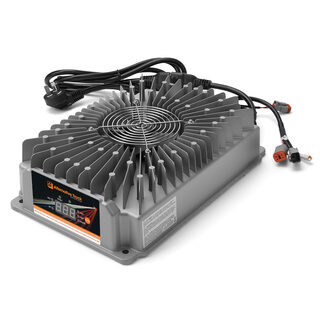

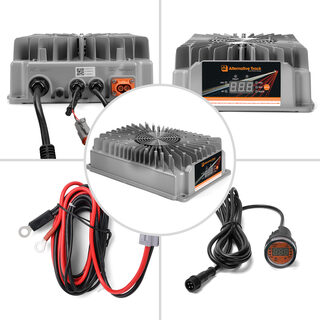

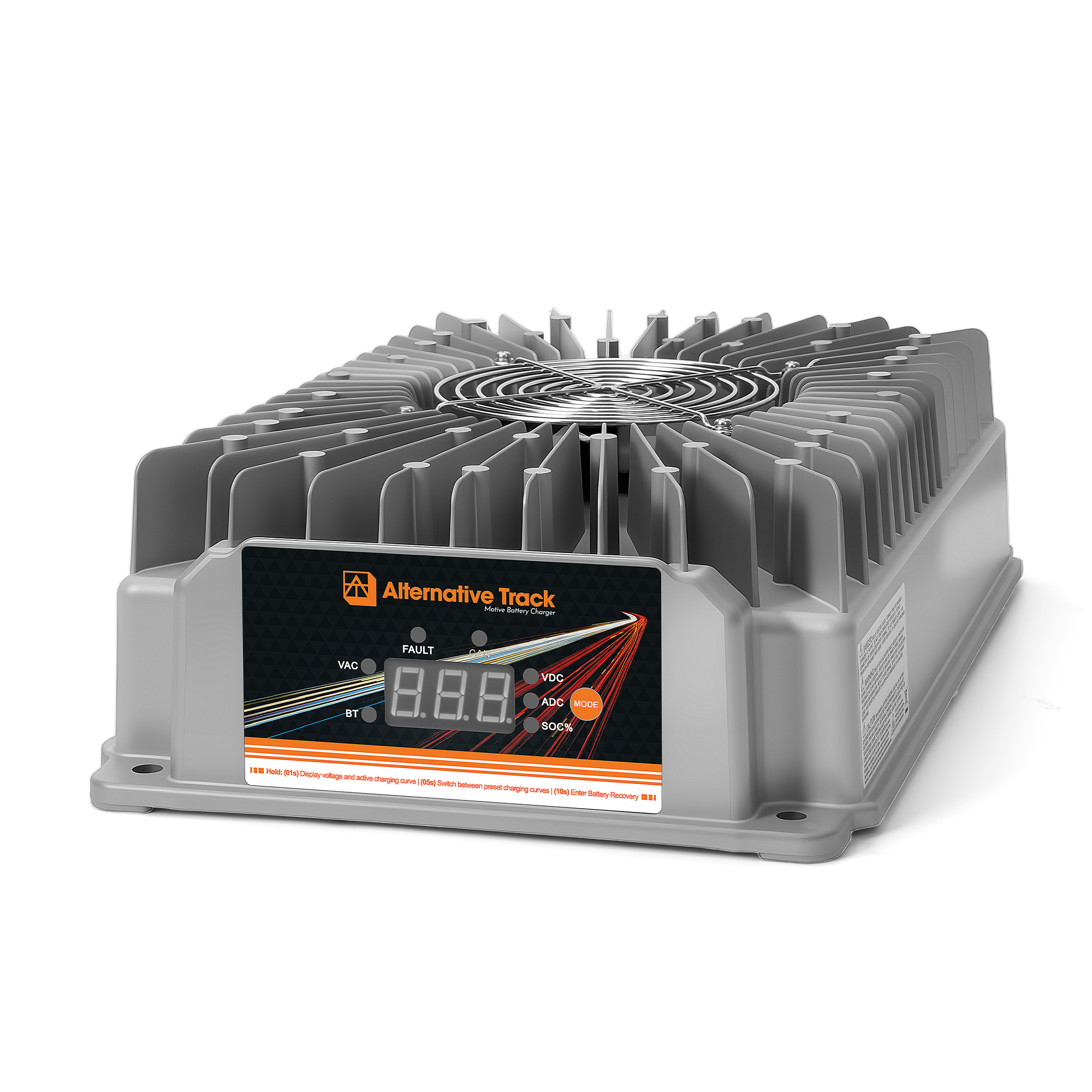

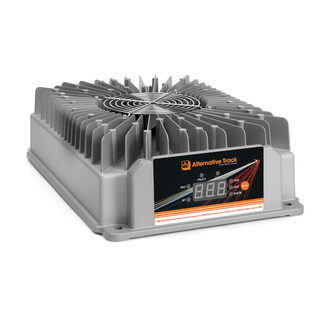

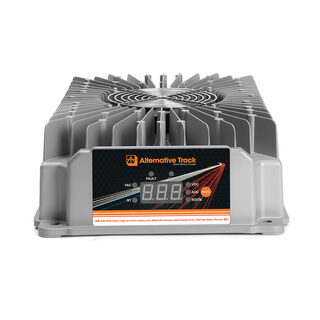

ALT-3000

2880W · 48V · 60A

The largest charger in the line. Specified for the biggest MEWP, AGV and industrial EV applications where charge time matters.

Output Power2880 W
Voltage48 V
Charge Current60 A
ChemistryLead-Acid · Lithium
Ingress RatingIP67
DiagnosticsTREKon Bluetooth
ComplianceUL1236, FCC, IEC61000
Operating Range−30°C to 65°C

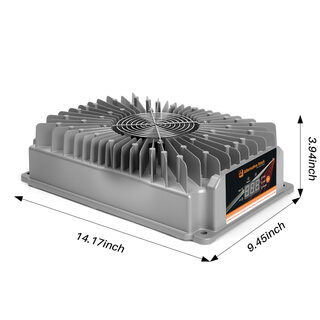

Dimensions359 × 238 × 100 mm
Weight6.8 kg
ALT-3000 Datasheet

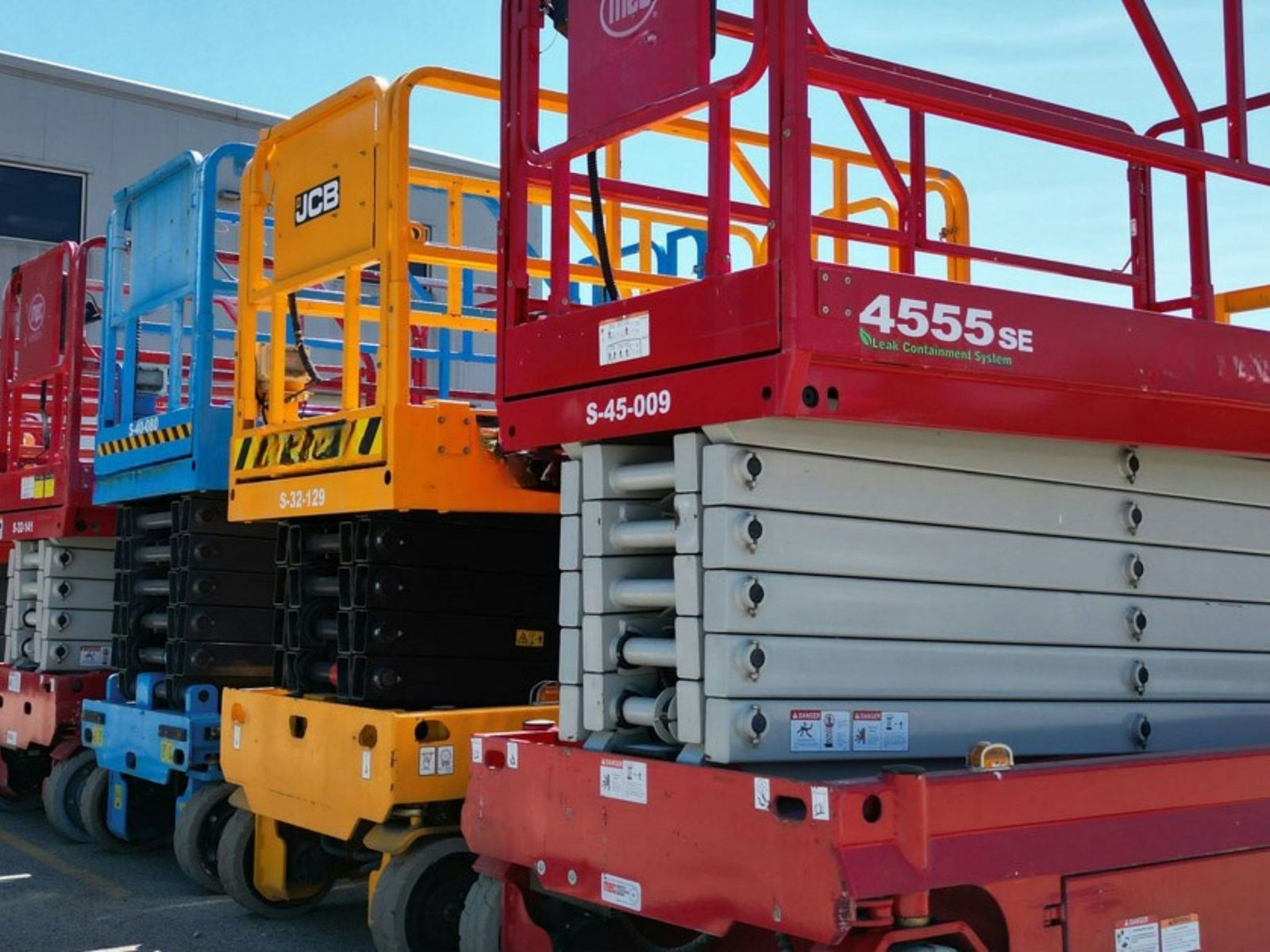

MEWP scissor lift application
01 · Application

MEWP

Scissor lifts, boom lifts and AWP fleets. The ALT-1700 sits at the centre of this category, with the ALT-3000 reserved for the largest platforms. TREKon telemetry tracks charge cycles across rental fleets.

Scissor Lifts Boom Lifts AWP
Recommended: ALT-1700

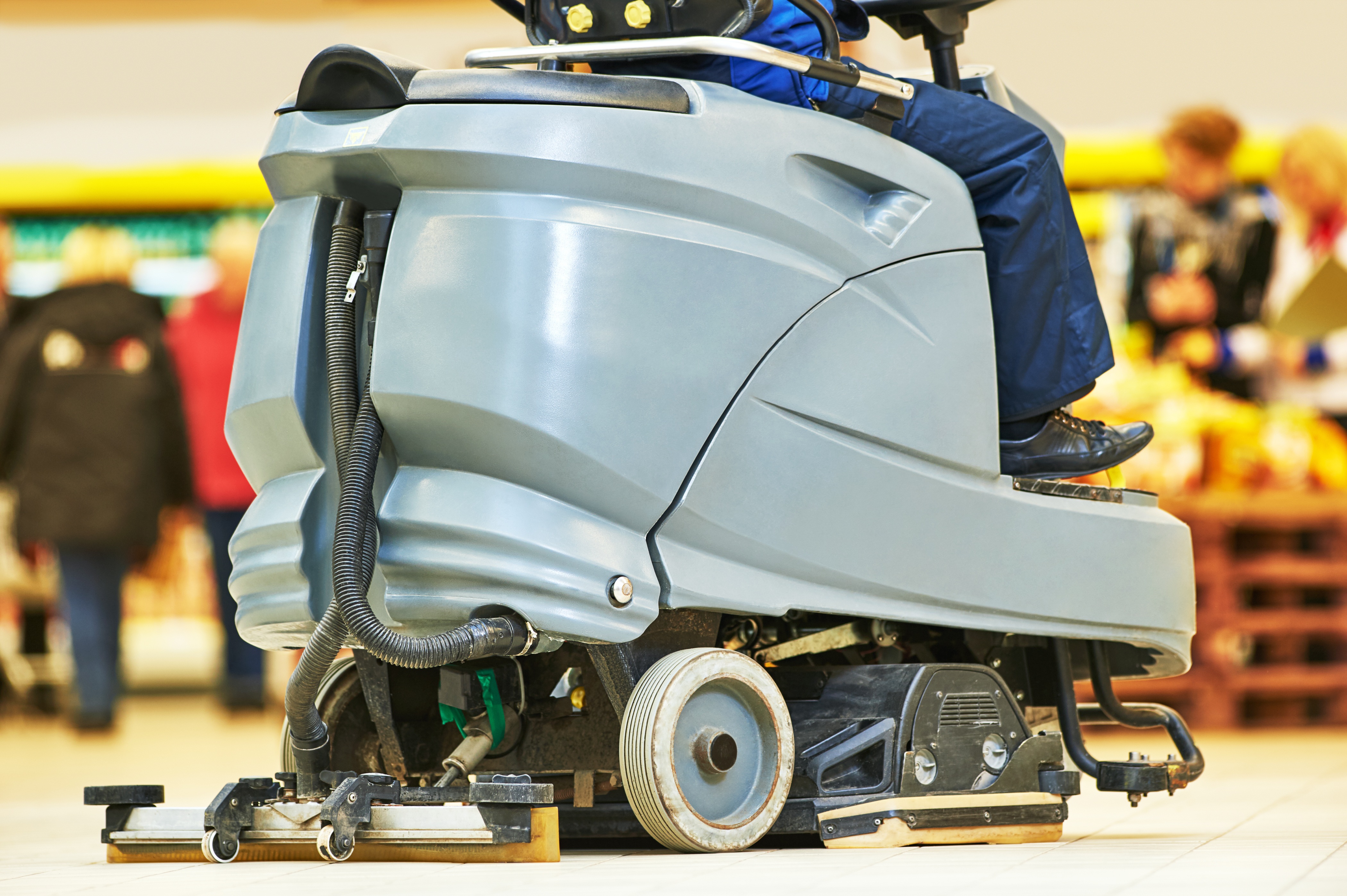

Ride-on floor scrubber in commercial environment
02 · Application

Floor Care

Scrubbers, sweepers and burnishers. ALT-700 / 900 or LIT-600 / 720 cover this category depending on whether diagnostic firmware is required. Lead-acid and lithium variants supported through the same chassis.

Walk-Behind Scrubbers Ride-On Sweepers Burnishers
Recommended: ALT-700 / 900
Industrial autonomous robot
03 · Application

Industrial EV

Utility vehicles, burden carriers, AGV. ALT-1700 and ALT-3000 deliver the duty cycle these platforms need. Remote-controlled charge initiation available on the 1700RC.

Utility Vehicles Burden Carriers AGV
Recommended: ALT-1700 / 3000

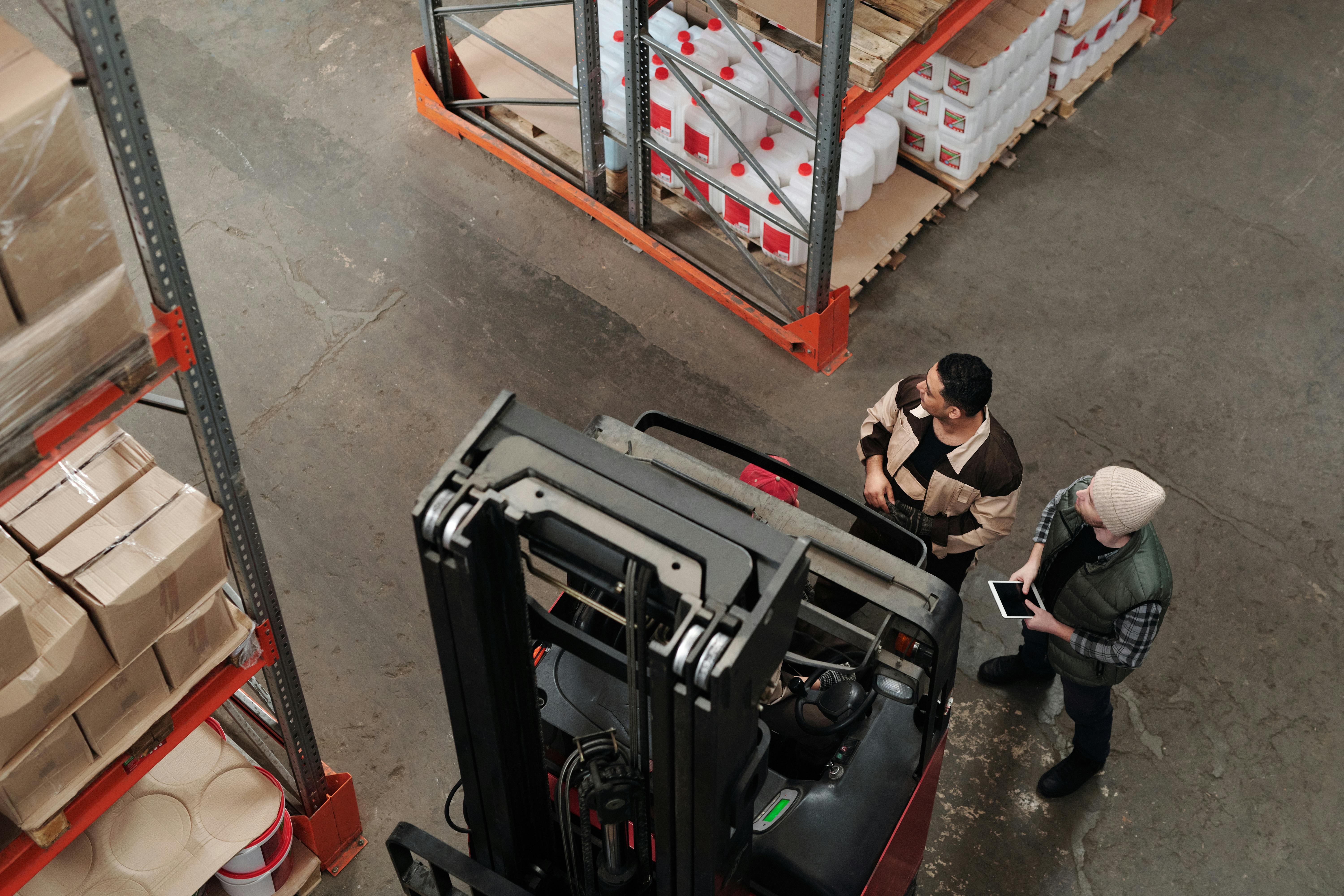

Forklift in warehouse
04 · Application

Golf & Material Handling

Golf carts, pallet trucks and forklifts. ALT-700 / 900 or LIT-900 / 1200 cover the smaller end. ALT-1700 picks up the heavier carts and pallet trucks.

Golf Carts Pallet Trucks Class III Forklifts
Recommended: ALT-700 to 1700
Resources

Documents &
Downloads.

Operating manuals, product brochures and deployment case studies for the ALT and LIT ranges. For full datasheets, custom configurations, or documents not listed here, contact us.

Operating Manuals

Installation & Operation.

Installation, wiring, charge profiles, app setup and field troubleshooting. Model-specific values on the product label or datasheet take precedence.

Operating Manual

Charger User Manual

Installation, wiring, charge profiles and field troubleshooting for the full ALT range.

PDFALT & LIT
View Download PDF
App Guide

TREKon App Guide

Step-by-step setup for iOS and Android. Bluetooth pairing, profile selection, fleet diagnostics.

PDFTREKon
View Download PDF
Product Brochures

Range Overviews.

Range overviews and side-by-side specification tables across the ALT and LIT series.

Brochure

Product Brochure

Overview of the full ALT range, key specs, and applications. Best for first-time enquiries and OEM evaluations.

PDFALT & LIT
View Download PDF
Specification Table

Spec Comparison Sheet

Excel workbook with separate tabs for the ALT and LIT ranges. Compares power, voltage, current, chemistry, ingress, and compliance specs side-by-side.

XLSXALT & LIT
Download XLSX
Case Studies

In The Field.

Real deployments with OEMs, rental networks and distributors. Read online or download the PDF.

Case Study

Joynice — Taiwan

Joynice cut technician dispatch by 47% across its IPC floor-scrubber fleet with the ALT-400 and ALT-700. TREKon data settled disputes, STP Tech reduced SKUs.

Floor CareTaiwan
Read Download PDF
Case Study

Dingli — Mast Lifts

Dingli specifies the ALT-700 inside a sealed body cavity on its mast-lift line. TREKon Bluetooth lets charge profiles get tuned without opening the access panel or breaking the IP67 seal.

MEWPZhejiang, China
Read Download PDF
Case Study

Sinoboom — Spider Lifts

Sinoboom replaces its overseas spider-lift charger supplier with a custom-spec ALT-1700. Sub-half the unit cost and a one-week sample turnaround for the bespoke build.

MEWPHunan, China
Read Download PDF
Case Study

Roshow — Custom Build

Roshow specifies a single custom ALT-1700RC with four features: TREKon Bluetooth, pluggable I/O cabling, 400V wide-input protection, and field-replaceable modular internals.

MEWPZhejiang, China
Read Download PDF
Case Study

Horizon — Rental Network

Horizon pulls live telemetry from every ALT Series charger across 200+ rental depots into a central fleet console and pushes OTA firmware from HQ — no truck rolls for profile changes.

MEWP RentalShanghai
Read Download PDF

Need help sizing for your fleet?

Talk To Engineering
